The Ipe Clip
Extreme Family The Ipe Clip Extreme are hidden
deck fasteners designed with Hurricanes in mind. They
hold better than most if not all other hidden clips.
When you have a class 5 hurricane heading your way you do
not want to have to worry about deck board "missiles" flying
towards you or your loved ones. Actually, probably the
last thing you are thinking about is a deck. With
these fasteners you will not have to. Lab test showed
they held with over 1000 pounds uplift.

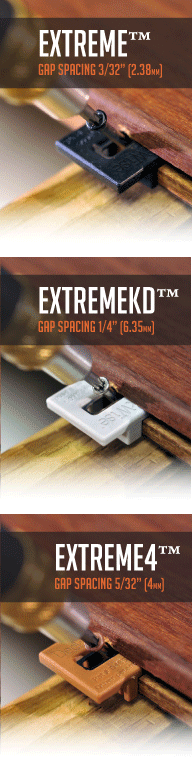

The Extreme fasteners have 3 preset gaps depending upon
your needs. They have 3/32", 1/4", and 5/32" spacing.
In additon, they come in three colors including the
traditional "Ipe Brown," Pantina Grey," and Shadowline
Black."
Installation:
The Ipe Clip Extremes are easily installed from the top of
the deck. Just predrill the bottom side of the deck
board, slip in the clip, and put in the screw.
Coverage: A box
of 175 clips will cover approximately 100 sq ft (9.2 metres)
assuming 16" US standard joist spacing.
In the Box:
(175) IPE CLIP® EXTREME™
Hidden Deck Fasteners
(190) Stainless Steel T10 - Star Drive
Screws (305SS)
(12) 3/8" Tapered Ipe plugs
(1) 1/8" High Speed Drill Bit
(1) Screw Gun Driver Bit
(1) Instruction Sheet
Optional 316
Stainless and/or different length screws

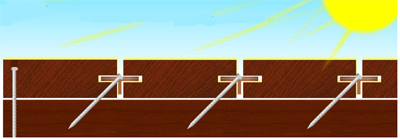

Installation Example |
